GSD Korea: Stretched and High Brightness Displays

GSD (Gumi City, Korea) stretched displays, also known as resized, bar-type, ultrawide, or cutting, are a perfect fit for those applications with reduced space where the standard aspect ratio displays cannot fit. Within a very delicate and highly professionalized process performed in a class 1000 clean room, and under an official license permit, GSD cut the Open Cells and LCD panels to meet each customer desired size. After this, they design and build the backlight and mechanics if needed. From standard to high brightness models, GSD panels are used in a wide range of applications such as: Gaming, Passenger Information, Broadcasting Displays, Avionics, etc.

  • Ultra Wide screen
  • LED Backlight
  • Various custom design sizes: 15.0″ to 55.0″ (Original base panel size)
  • Orientation: Landscape / Portrait
  • Product category: LCD panel with LED driver / LCD panel with ADBoard kit / Open Frame monitor / Chassis Type monitor
  • Other options: brightness enhancement, RS232 control, dimming sensor, PCAP touch, Android Board, Daisy Chain Board, etc.

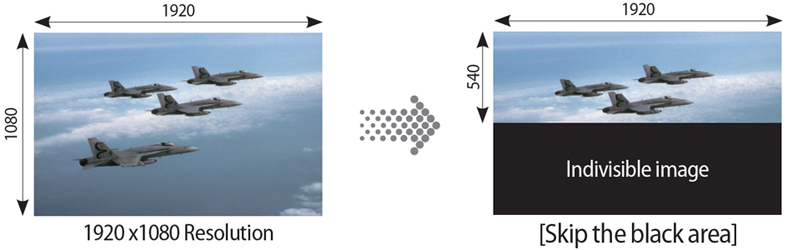

Content Optimization

Product category

LCD panel (with or without ADBoard kits)

  • Option 1: LCD with LED driver only
  • Option 2: LCD with AD board kit (inputs: RGB, DVI, HDMI, DP, USB)

Open Frame monitor

Chassis Type or Closed frame monitor

Suggested Uses

  • Gaming Button Deck
  • Passenger Information
  • Avionics
  • Vending Machines
  • Broadcasting

Line-Up

Model Display size Active area (mm) Resolution Brightness(cd/㎡) View angle(R/L/U/D) Outline Dimension (mm) Availability
JL150AT256 12.3″ 304.1×76.0 1024×256 250 85/85/80/80 326.7×101.5 MP
(15.0″ 1/3) 300 / 700 85/85/85/85 326.3×101.4
JL170AT398 13.9” 337.9×105.1 1280×398 300 85/85/80/80 358.5×131.3 MP
(17.0” 2/5)
JL185AT238 16.3” 409.8×71.4 1366×238 250 85/85/80/80 431.8×95.6 MP
JL185AH238 (18.5” 1/3) 500/1000 430.4×95.6
JL190BT342 17.3” 374.8×100.1 1280×342 250 89/89/89/89 396×124.3 MP
(19.5” 1/3)
JL190AT390 15.5” 376.3×114.7 1280×390 250 85/85/80/80 396.0×138.6 MP
(19.0” 2/5)
JL215AT360 19.1” 476.6×89.4 1920×360 250 89/89/89/89 495.6×114.9 MP
JL215AH360 (21.5” 1/3) 700
JL215AH510 19.4” 476.6×126.6 1920×510 1000 89/89/89/89 495.6×150.7 MP
(21.5” 1/2)
JL215AT539 19.4” 476.6×133.8 1920×539 250 89/89/89/89 495.6×158.2 MP
JL215AH539 (21.5” 1/2) 700
JL215AT640 19.8” 476.6×158.9 1920×640 250 85/85/80/80 495.8×183.1 MP
(21.5” 3/5)
JL238BT1080 21.6” 527.0×148.2 3840×1080 300 89/89/89/89 545.0×175.2 MP
(23.8” 1/2)
JL230AT818 21.79” 509.2×216.9 1920×818 550 89/89/89/89 533.2×244.0 MP
(23.0” 3/4)
JL270CH540 24.45” 597.9×168.1 1920×540 500 85/85/80/80 630.0×203.0 MP
(27.0” 1/2)
JL320SH360 28.0” 698.4×131.0 1920×360 700 89/89/89/89 725.2×160.8 MP
(32.0” 1/3)
JL320SH540 28.5” 698.4×196.4 1920×540 700 89/89/89/89 725.2×226.3 MP
(32.0” 1/2)
JL550AH359 48.45” 1209.6×226.2 1920×359 450 89/89/89/89 1235.6×252.8 MP
(55.0” 1/3) 1500
JL550AH539 49.46” 1209.6×339.6 1920×539 700/3000 89/89/89/89 1236.0×367.2 MP
(55.0” 1/2)
